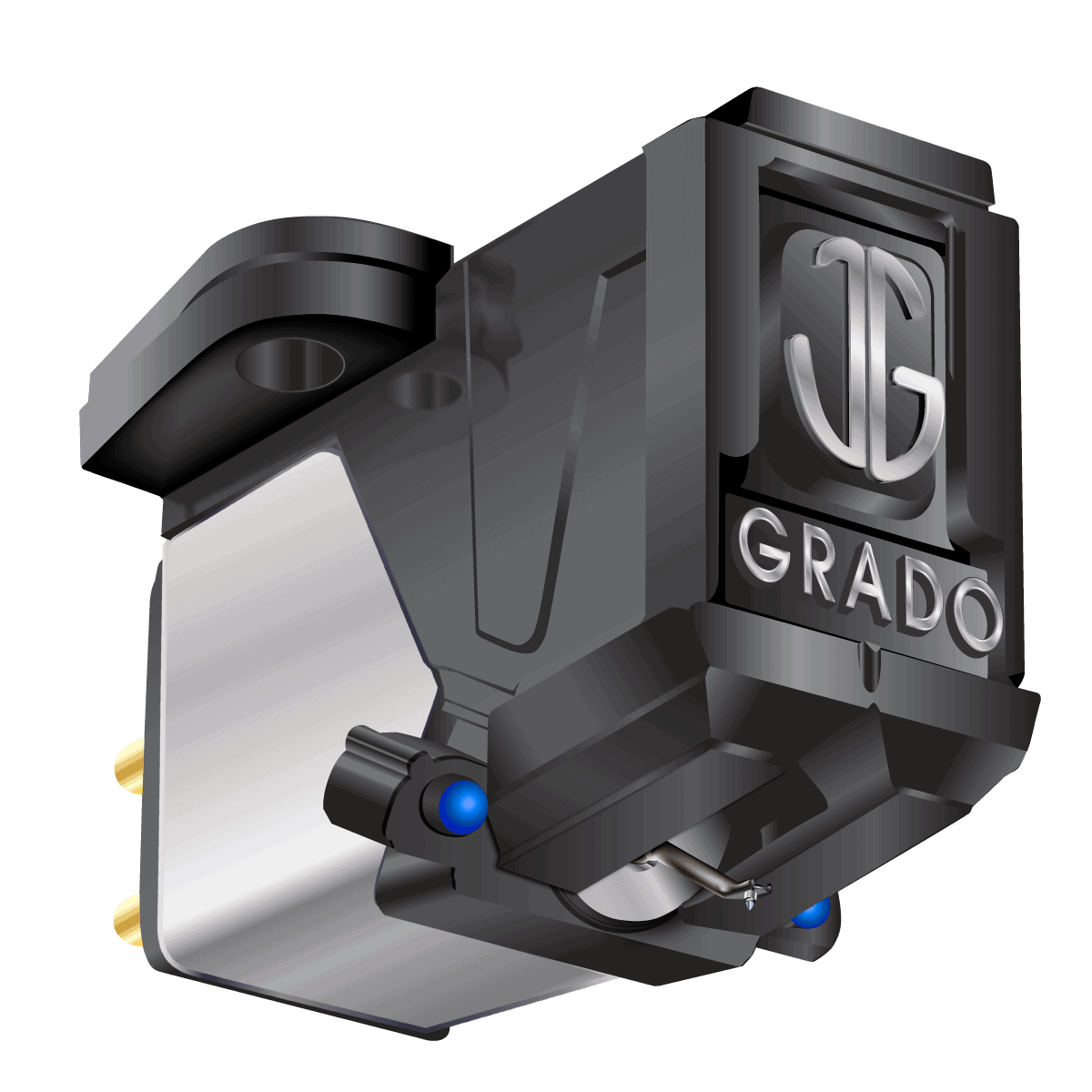

Both the Blue3 and Red3 use a four piece OTL cantilever that has a Grado specific diamond mounted on a brass bushing. The Red3 are hand selected from Blue3 production runs which meet higher test specifications. Approximately 10% of the run usually exhibits these specs and become a Red3.
Grado’s OTL, or optimized transmission line, technology provides an ideal transfer of signal from the surface of the LP to the generator of the system. This technology rejects unwanted resonances and lowers distortion preserving the fundamental and harmonic frequencies of the music. This also helps keep noise generated by the motor system in the cartridge to a minimum.
Grado’s OTL stylus/cantilever design makes records sound quieter, improves the height, width, and depth of the soundstage, and present more detail than previously obtainable.
As in all Grado phono cartridges the Red3 & Blue3 are powered by a twin magnet system that optimizes the balance between stereo channels. All internal magnetic circuit parts are held to extremely high tolerances creating the desired stereo imaging. Grado’s patented Flux-Bridger design allows the Red3 & Blue3 to have one of the lowest effective moving mass generating systems while creating an excellent balance throughout the full frequency range.
Frequency Response: 10-55
Channel Separation at 1KHz: 30
Input Load: 47K
Output at 1KHz 5CM/sec.: 5mV
Recommended Tracking Force: 1.5
Stylus Type: E
Compliance CUs: 20
Stylus Replacement: U
