Description

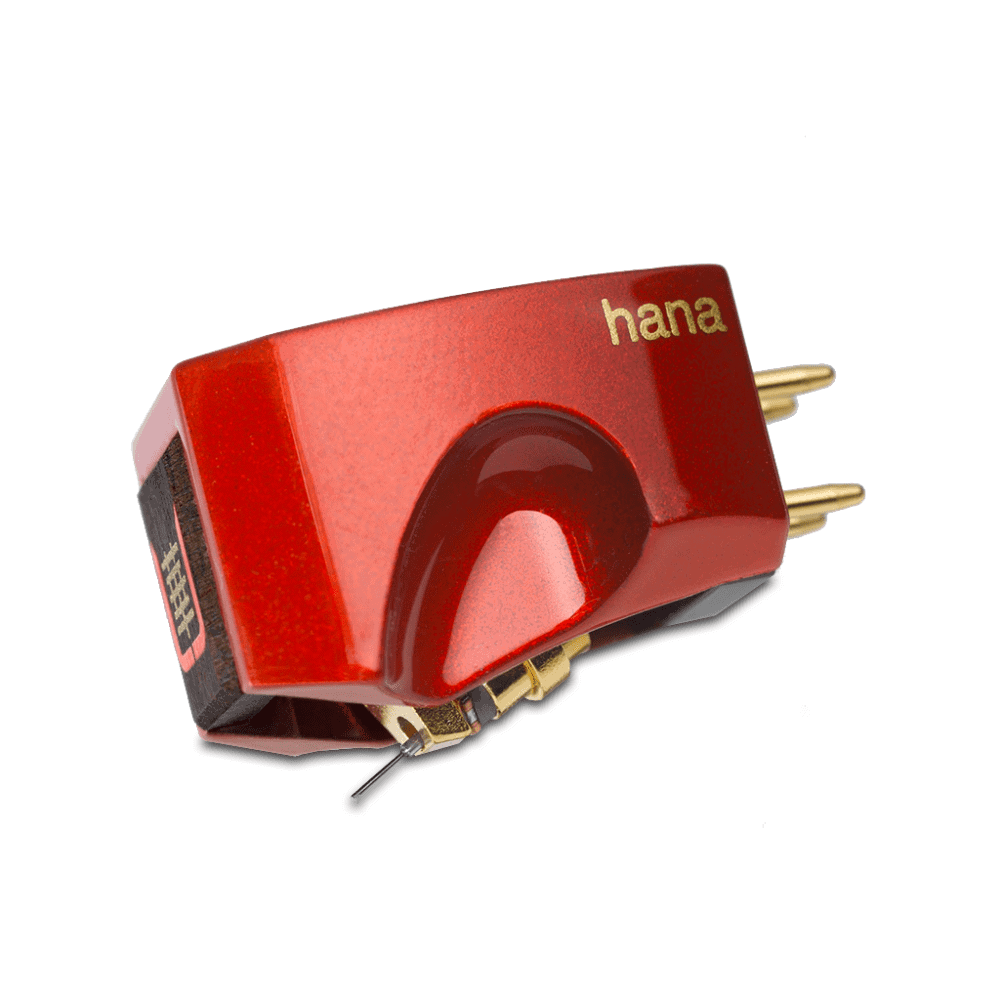

The HANA-Umami Red high-end moving coil cartridge combines brilliant materials and classic Japanese techniques with modern audio engineering. Ebony wood, rare-earth magnets, precision-cut diamond, high-purity copper wires, Urushi lacquering, and CNC machined Duralumin synergize under the vision of Hana designer Okada-san.
The synergistic relationship in MC generators between magnet, armature, and coil windings is a critical aspect of outstanding cartridge design; and like a signature dish at a Michelin 3-star restaurant, every element and detail working in concert results in a memorable and emotional experience.
All the major parts in a HANA-Umami Red are manufactured in house by Excel Sound with its rich history spanning over 50 years. Excel’s highly trained craftsmen skillfully hand assemble the HANA-Umami Red ensuring an intensely musical experience furthering the HANA “Brilliant and Gorgeous” sound quality.
SPECIFICATIONS
| Stylus | Nude Microline Tip |
| Cantilever | Boron |
| Magnetic Circuitry | Pure Iron/Cryo Treatment |
| Coil Wire | High Purity Copper |
| Cartridge Housing | POM (Delrin) / Brass |
| Output Level | 0.4mv/1KHz |
| Output Balance | <0.5dB/1KHz |
| Trackability | 70 µ m/2g |
| Channel Separation | 30dB/1KHz |
| Frequency Response | 12-45,000Hz |
| Impedance | 6Ω/1KHz |
| Suggested Load Impedance | >60Ω |
| Magnet | Alnico |
| Tracking Force | 2 grams |
| Weight | 10.5 grams |
| Height | 16.3 mm |
| Warranty | 2 years |
