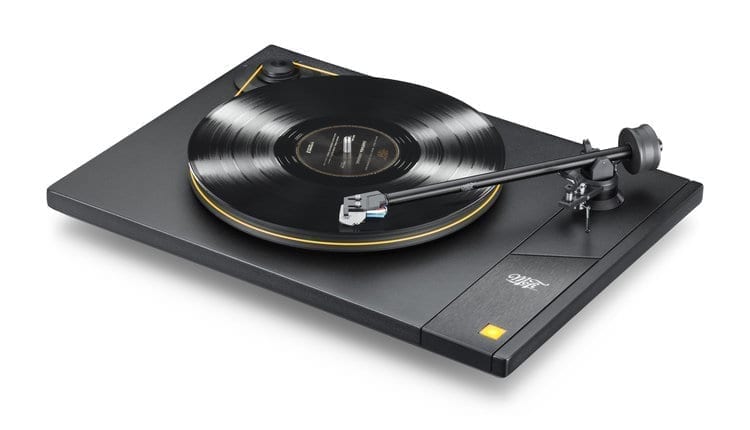

MoFi StudioDeck

$1,199.00 $1,699.00

The entry-level first offering turntable from Mobile Fidelity, the Studiodeck is a phenomenal turntable designed by the minds behind the highest quality in vinyl pressings. Featuring the StudioTracker cartridge and 10″ Studio Tonearm, the 3/4 Delrin platter creates a phenomenal sound signature that instantly attracts the listener.

Home of the Turntable Bar, you can audition Mofi turntables in-store in our Pasadena, CA location for a one-of-a-kind turntable listening experience.

Clear

Description

It’s only natural to use the word “Studio” in the name of a Mobile Fidelity turntable, as doing so brings together MoFi’s software and hardware sides. And while it’s their entry-level offering, StudioDeck produces high-caliber sound at a value price. Designed in collaboration with some of the world’s finest audio designers, StudioDeck features an incredible amount of ingenuity and technology usually reserved for much more expensive products.

STUDIO TONEARM

Custom developed and manufactured in the USA, this 10-inch straight aluminum gimbaled bearing tonearm delivers the ideal balanced of rigidity and low tracking error, so all you hear is what is in the grooves. Tweak to your heart’s delight with provisions for adjustable tracking force, VTA, azimuth, and anti-skate.

ISOLATED AC SYNCHRONOUS MOTOR

MoFi’s 300 RPM stepped-pulley AC motor provides excellent speed stability for pitch accuracy and rhythmic drive. The Delrin® pulley has two positions for 33 1/3 and 45 RPM speed selection. Motor vibrations are kept away from the platter and stylus by using advanced dampening materials that decouple the motor from the rest of the turntable.

CONSTRAINED LAYER DAMPENING

StudioDeck features an aluminum plate carefully bonded to an MDF body to add mass and eliminate tonal coloration, maintaining the true sound found on the record.

METICULOUS DESIGN AND EVALUATION

Advanced technology, user-friendly features, and unflappable design elements ensure phenomenal playback—ultimately bringing the sound of Mobile Fidelity’s famous studio into your home.

ANTI-VIBRATION FEET BY HRS

Any vibration of the stylus that is not created by the grooves in the record is a distortion that will mask musical detail. Developed in conjunction with the engineering team at Harmonic Resolution Systems, the world leader in vibration isolation for audio equipment, the included MoFi anti-vibration feet isolate your turntable from bad vibrations.

3/4-INCH DELRIN® PLATTER

Delrin® is a next-generation polymer developed by Dupont. In the world of audio, Delrin’s® highly crystalline structure presents a wonderful impedance match to vinyl records, effectively grounding unwanted noise and keeping it away from the stylus.

STEEL AND TEFLON INVERTED BEARING

StudioDeck’s steel inverted bearing system is designed for smooth, quiet rotational stability. The extremely low tolerance combination of steel, bronze, and teflon—found in much more expensive turntables—will provide you many years of high-performance playback.

SPECIFICATIONS

Motor
300 RPM AC Synchronous

Speeds
33 1/3 RPM, 45.0 RPM

Platter
3.88 lb Delrin®

Wow & Flutter
0.017% – 0.025%

Signal-To-Noise Ratio
72dB

Power Supply Requirements
120V 60Hz, 220-230V 50Hz, 100V 50Hz

Power Consumption
< 5W

Dimensions
19.69″ x 5.375″ x 14.25″

Weight
19.1 lb

TONEARM SPECIFICATIONS

Type
10″ straight aluminum, gimbaled bearing

Overhang
0.71″ (18mm)

Offset Angle
22.8˚ (+/- 2˚ adjustable)

Cartridge Weight Range
5g – 10g

Additional information

Weight 19.1 lbs
Dimensions 20 × 15 × 6 in
Motor

300 RPM AC Synchronous

Speeds

33 1/3, 45 RPM

Platter

3.88lb Delrin

Wow & Flutter

.017% – .025%

Signal-To-Noise Ratio

72dB

Power Supply Requirements

120V – 60Hz
220-230V – 50Hz
100V – 50Hz

Power Consumption

< 5W

Dimensions

19.69" x 5.375" x 14.25"

Weight

19.1lb
